Introduce

Custom processing is category of worm gear reducer gear type bevel gear reducer

The installation form of vertical layout of three ring type tooth surface hardness of hardened

Use reducer gearbox model F series brand South

Series of double reduction ratio of 3.81

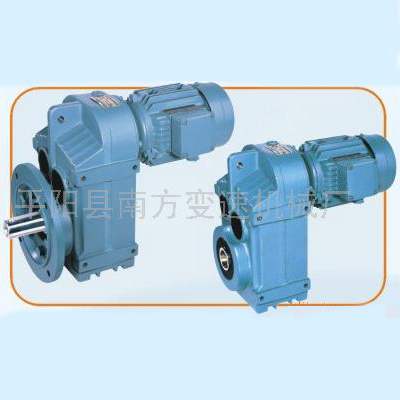

A, F series parallel shaft helical gear reducer motor characteristics: 1, F series reducer, in combination with the international technical requirements, has the very high technology content. 2, space saving, reliable and durable, to withstand high overload capacity, power is more than 90KW. 3, low energy consumption, superior performance, the reducer efficiency is as high as 95%. 4, small vibration, low noise, high energy saving, high-quality section steel, steel box, gear surface after high frequency heat treatment. 5, after precision machining to ensure parallel axis and positioning accuracy, all these constitute the speed reducer of gear drive assembly is configured with all kinds of motor, forming a mechanical and electrical integration, fully guarantee the product quality characteristics. Second, a list of parameters: parameters in detail, please obtain information) F series output speed: output 0.1~750/min torque: less than or equal to 18000N.m motor power: 0.12~200KW

Reducer profile:

The reducer is a power transmission mechanism, the gear speed converter, motor (motor) rotary number reduction to rotation number, and get a larger torque mechanism. In currently used to transfer power and movement mechanism, the application range of the reducer is quite extensive, in almost all kinds of mechanical transmission system can see traces of it from the transport ships, automobiles, motorcycles, construction heavy equipment, industrial machinery and processing equipment and automated production equipment to common daily life appliances, clocks and watches, and so forth. The application of power transmission from the work of small load, the precise angle transmission can see reducer application, and in industrial applications, reducer with a slowdown and increase the torque. So it is widely used in the speed and torque conversion equipment.

The main role of the reducer:

1) reduce speed and increase the output torque, torque output ratio of motor output by the deceleration ratio, but should pay attention to not exceed the speed reducer rated torque.

2) the reduction of the load inertia, the reduction of inertia for the reduction ratio of the square.
