Introduce

Brand South speed machine model S series module Wangwang Advisory (mm)

The number of teeth tooth Wangwang Advisory Wangwang Advisory (mm) facewidth Wangwang Advisory (mm)

The weight of Wangwang Advisory (kg) stainless steel cylindrical gear shape

The scope of gear tooth surface hardness of hardened gear tooth shape

Gear tooth position

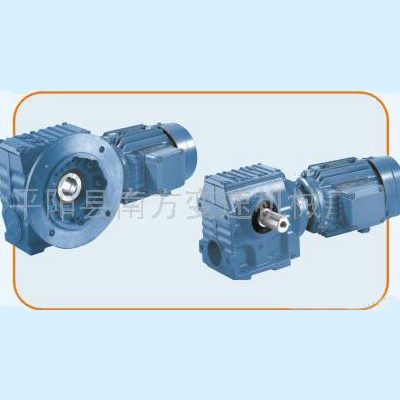

One, S series helical gear - worm gear reduction motor characteristics: 1, S series helical gear - worm gear reduction motor has a high technical content, there are helical gears and worm wheel and worm combination drive, improve the torque and efficiency of the machine. The series of product specifications complete, wide speed range, good versatility, to adapt to a variety of installation, performance, safety and reliability, long life, the implementation of international standards. 2, the body surface irregularities with cooling effect, strong vibration, low temperature rise, low noise. 3, the machine has good sealing performance, strong adaptability to the environment, can work continuously in corrosion, damp and other harsh environments, and has antiseptic characteristics, long time storage. 4, the machine has high transmission precision, self-locking function, especially suitable for working in the occasions of frequent starting, can connect all kinds of reducer and configuration of various types of motor drive, 90 drive can be installed in the operating position. 5, the motor key parts using high wear-resistant materials, and after a special heat treatment, has the advantages of high processing precision, stable transmission, small capacity, long life and other characteristics. 6, the allocation of various types of motor reducer can be formed, mechanical and electrical integration, fully guaranteed product quality characteristics. Second, a list of parameters: parameters in detail, please obtain information) s series output speed: output 0.1~433/min torque: less than or equal to 4200N.m motor power: 0.12~22KW

Reducer profile:

The reducer is a power transmission mechanism, the gear speed converter, motor (motor) rotary number reduction to rotation number, and get a larger torque mechanism. In currently used to transfer power and movement mechanism, the application range of the reducer is quite extensive, in almost all kinds of mechanical transmission system can see traces of it from the transport ships, automobiles, motorcycles, construction heavy equipment, industrial machinery and processing equipment and automated production equipment to common daily life appliances, clocks and watches, and so forth. The application of power transmission from the work of small load, the precise angle transmission can see reducer application, and in industrial applications, reducer with a slowdown and increase the torque. So it is widely used in the speed and torque conversion equipment.

The role of main reducer:

1) slow down while increasing the output torque, the torque output ratio by motor outputby slowdown, but be careful not to exceed the rated torque reducer.

2) speed and reduce the load inertia and the inertia of deceleration than reduced to the square.
